24C16
FEATURES ? Low voltage and low power operations: AT24C04N/08A/16A: VCC=1.8V to 5.5V ? Maximum Standby current < 1μA (typically 0.02μA and 0.06μA @ 1.8V and 5.5V respectively). ? 16 bytes page write mode. ? Partial page write operation allowed. ? Internally organized: 512 x 8 (4K), 1024 x 8 (8K), 2048 x 8 (16K). ? Standard 2-wire bi-directional serial interface. ? Schmitt trigger, filtered inputs for noise protection. ? Self-timed Write Cycle (5ms maximum). ? 1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V) Compatibility. ? Automatic erase before write operation. ? Write protect pin for hardware data protection. ? High reliability: typically 1, 000,000 cycles endurance. ? 100 years data retention. ? Industrial temperature range (-40℃ to 85℃). ? Standard 8-lead DIP/SOP/TSSOP and 5-lead SOT-23/TSOT-23 Pb-free packages.
DESCRIPTION The AT24C04N/08N/16N series are 4,096/8,192/16,384 bits of serial Electrical Erasable and Programmable Read Only Memory, commonly known as EEPROM. They are organized as 512/1,024/2,048 words of 8 bits (1 byte) each. The devices are fabricated with proprietary advanced CMOS process for low power and low voltage applications. These devices are available in standard 8-lead DIP, 8-lead SOP, 8-lead TSSOP, and 5-lead SOT-23/TSOT-23 packages. A standard 2-wire serial interface is used to address all read and write functions. Our extended VCC range(1.8V to 5.5V) devices enables wide spectrum of applications.

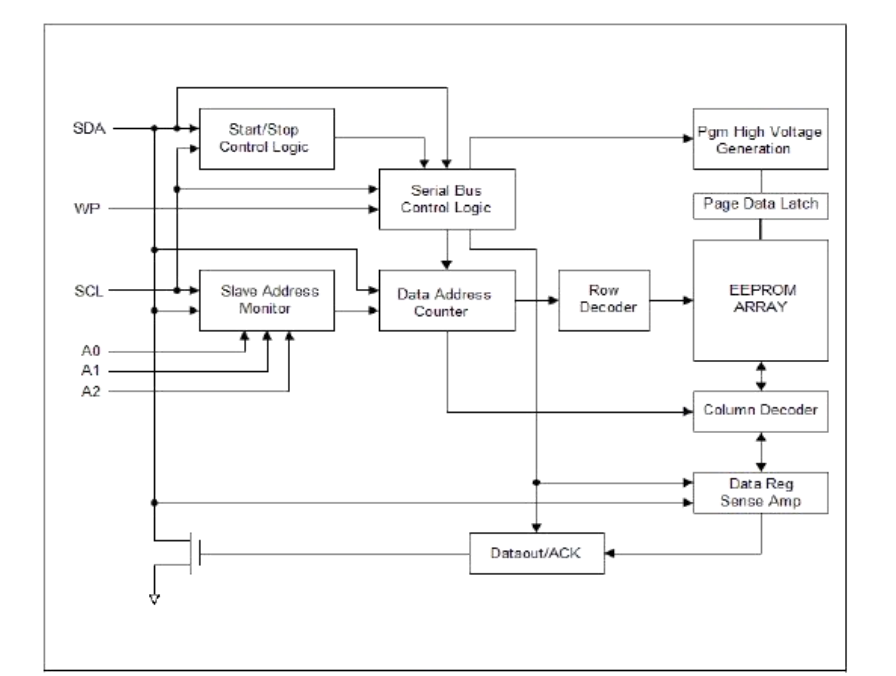

![QDH9LXP2}}5}4SD7CT]}XJD.png](/uploadfile/image/20211011/1633945617828932.png "1633945617828932.png")
